Deckhouse Tour

Deckhouse: Now lets move up top to the deckhouse with it's spacious galley, built in banquette, day head and helm area

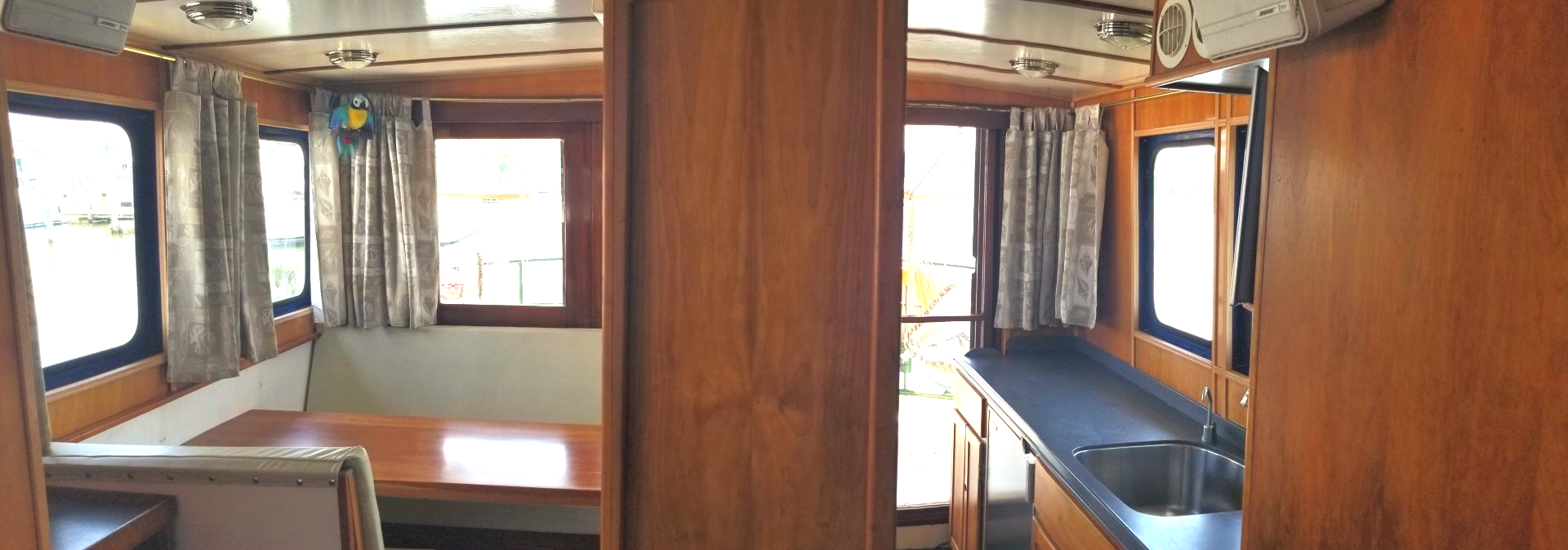

Deckhouse Galley

View is looking aft from helm area to galley and banquette seating. The wall to the right in the picture is the upstairs day head. The post in the center is the dry stack exhaust from the engine room below up to the deckhouse roof. All wood is cherry or teak.

Button
Button

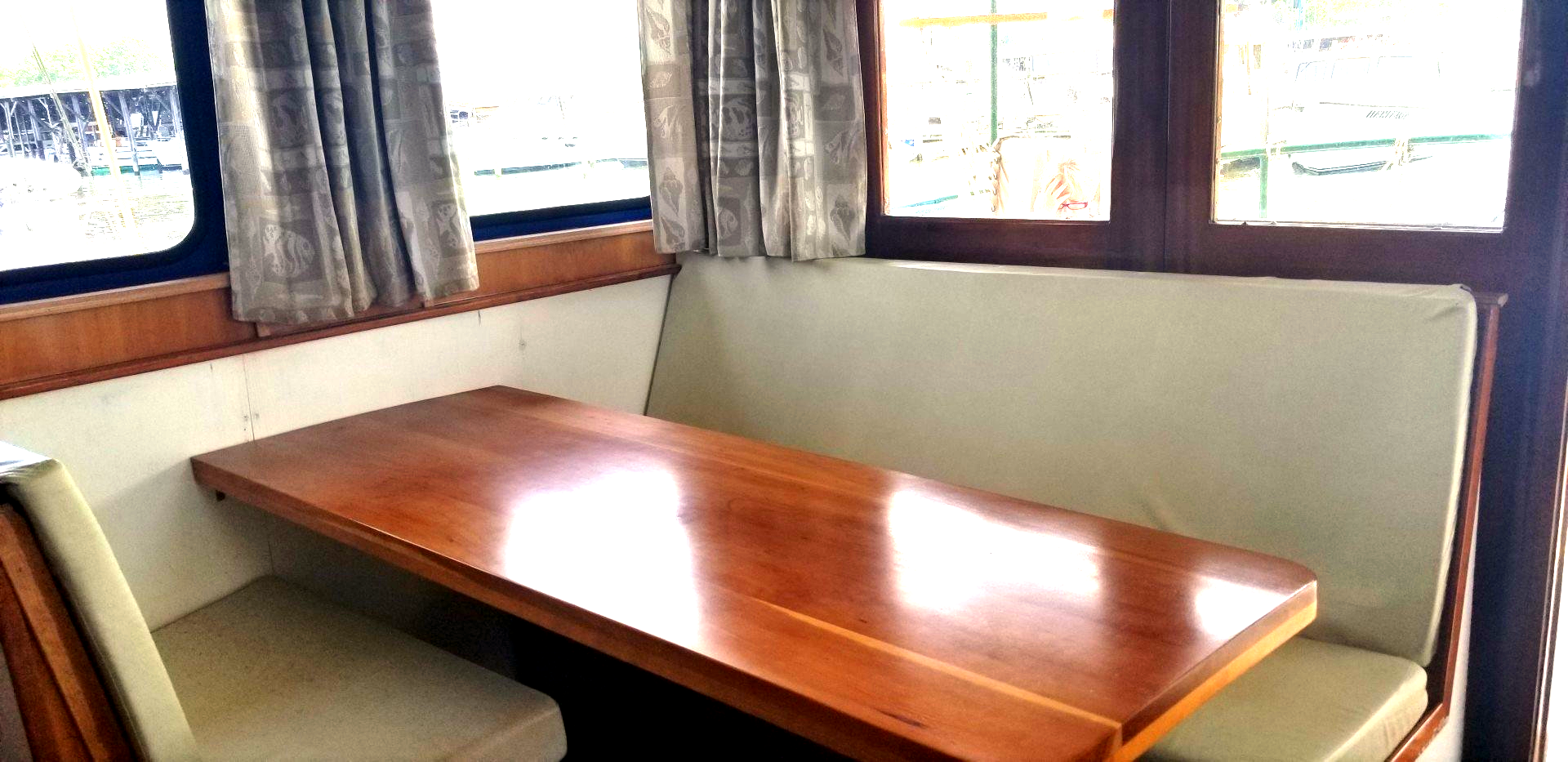

Banquette dining area

Table is solid cherry and can seat six with two removable chairs. Banquette seating is marine grade ultra-leather.
Button
Another view of the table

Solid cherry 6' long table. There are lined curtains for all windows allowing privacy at the dock and reducing sun load in the deck house. Note the built-in corian topped teak bar with microwave and cabinets under.
Button

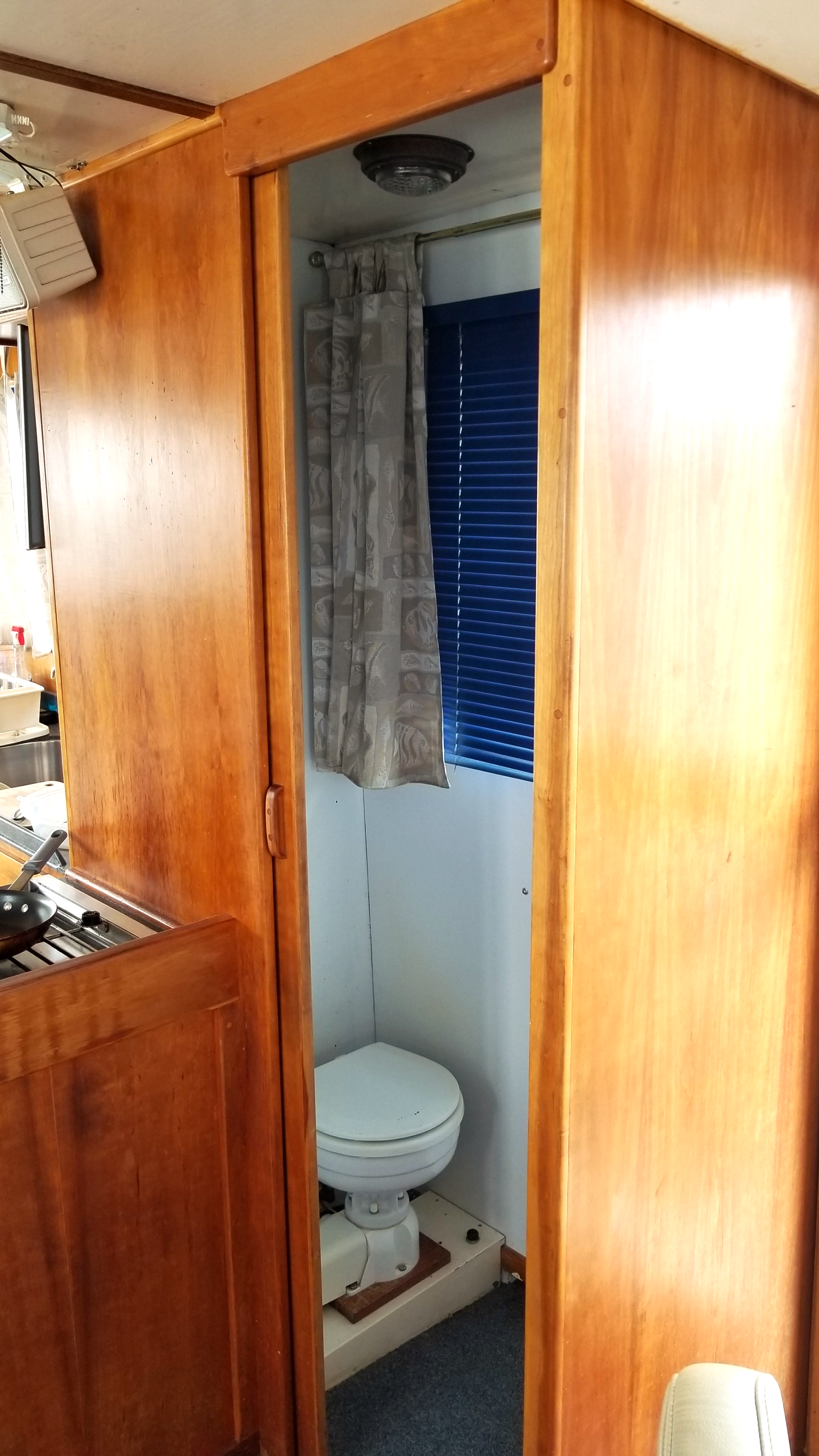

Day Head

Day head on port side of deck house behind helm area, forward of galley. Electric push button toilet
Button

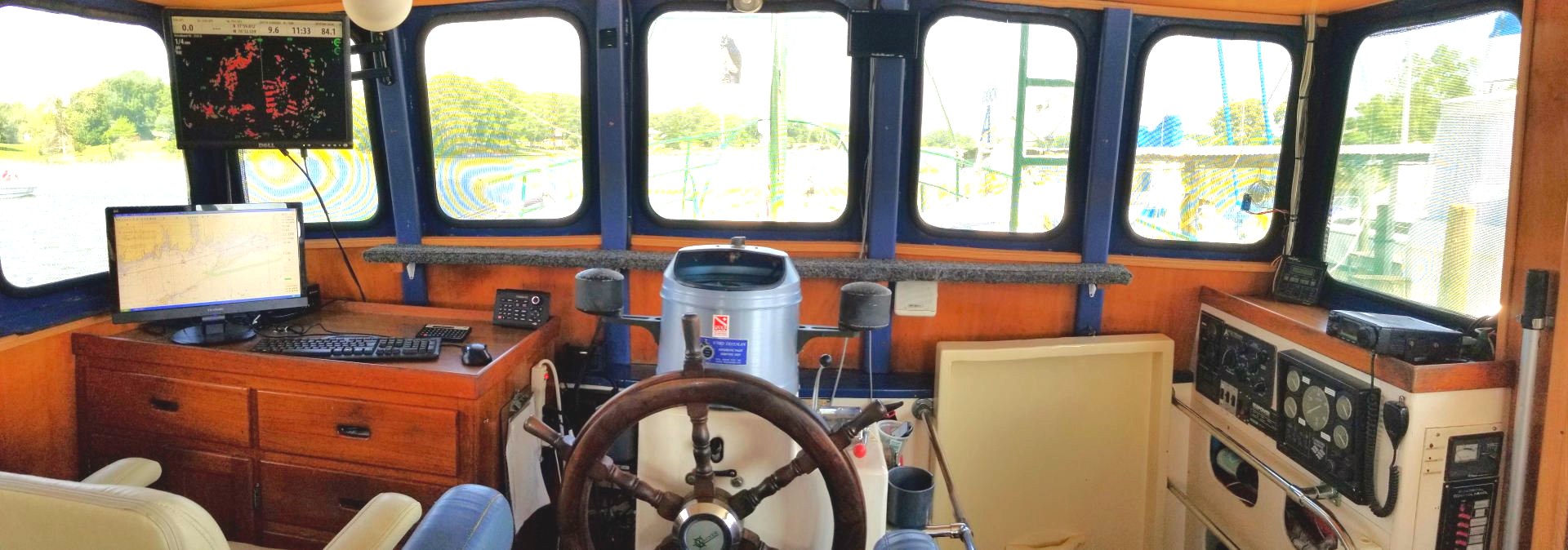

Helm

Panoramic view of the helm. Nav station to port with Simrad NSO 4G radar and Navionics charting above. Engine instruments to starboard
Button

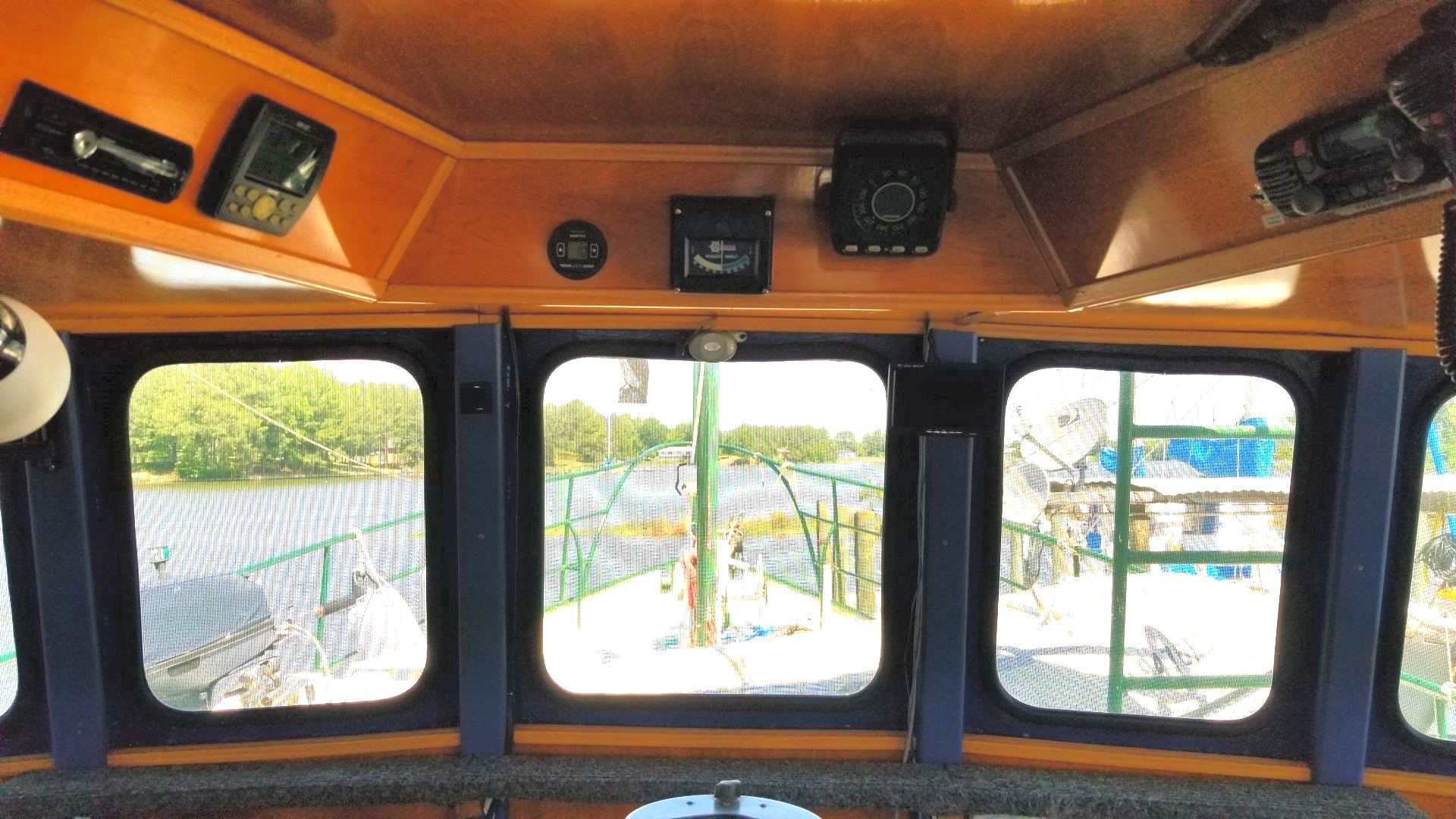

View from the helm

distortion seen in windows is due to textilene covers used while at dock
Button

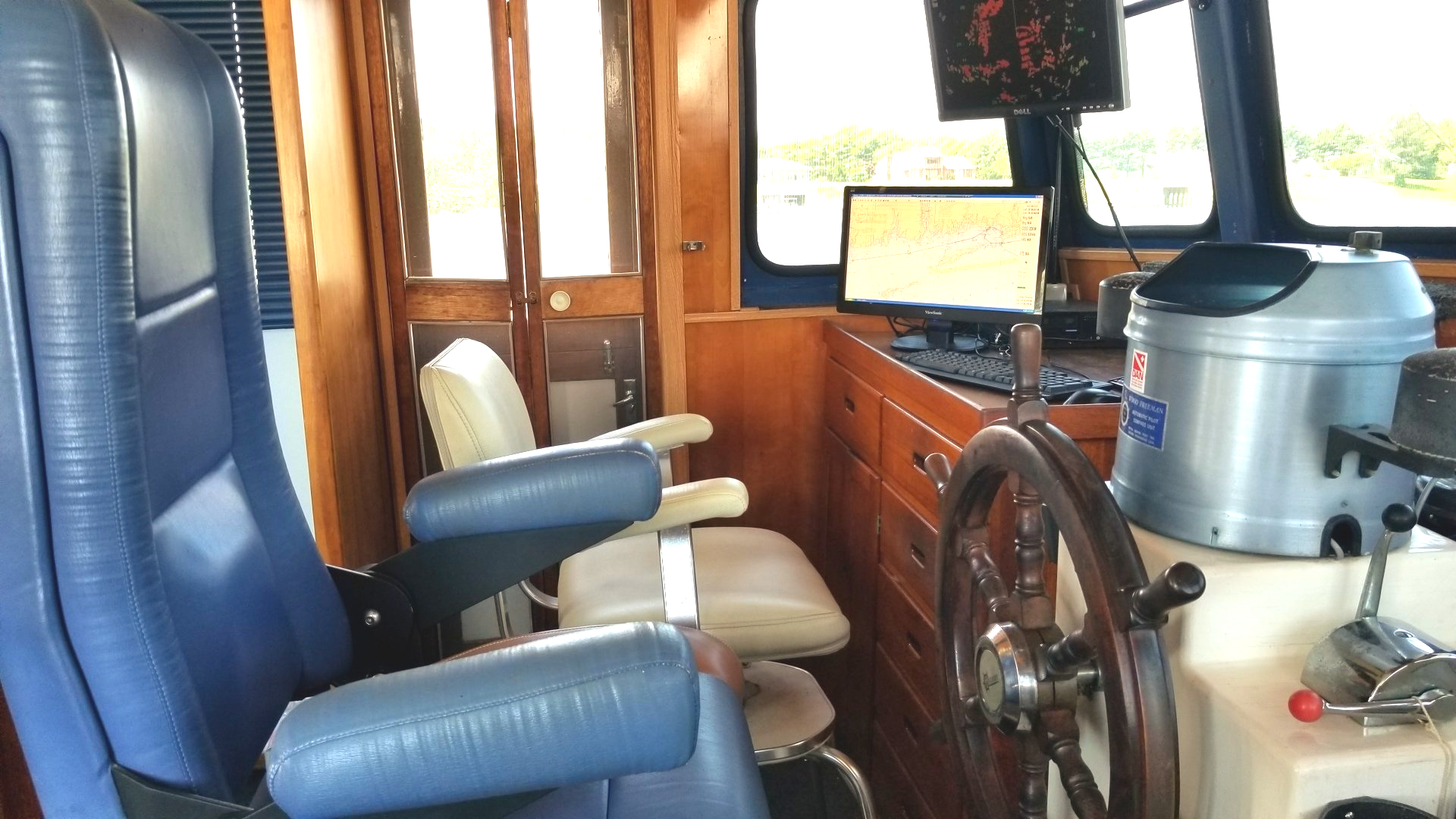

Nav Station to port

note Stidd "Admiral" helm chair and Pompanette mate's chair. Stidd chair has recently been re-covered in ultraleather to match mate's chair
Button
Nav station

another view of nav station showing Simrad 4G radar display & computer charting
Button

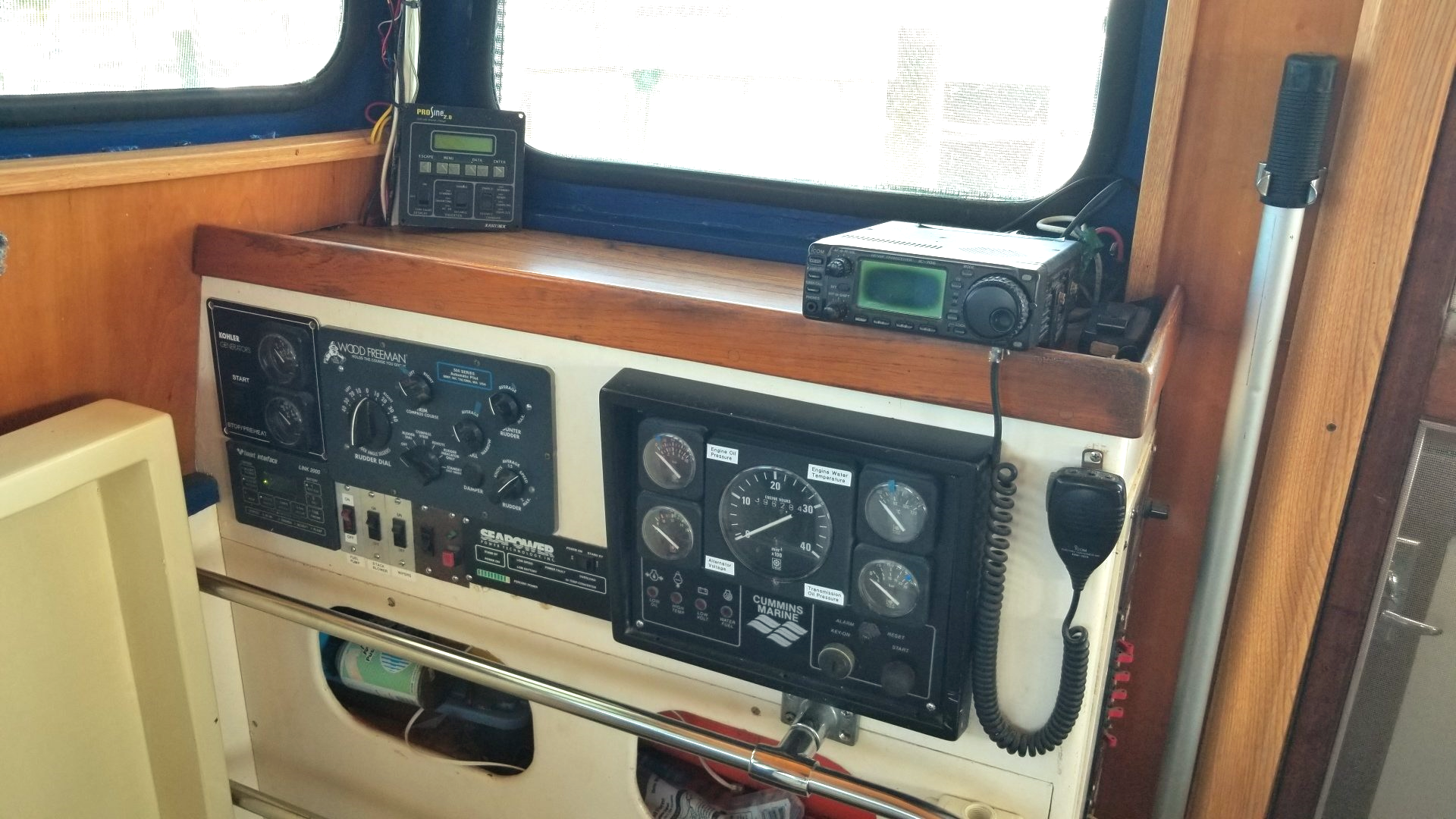

Engine instrument panel

Instrumentation for generator, Autopilot, SeaPower and main engine. SSB above and inverter control in corner.
